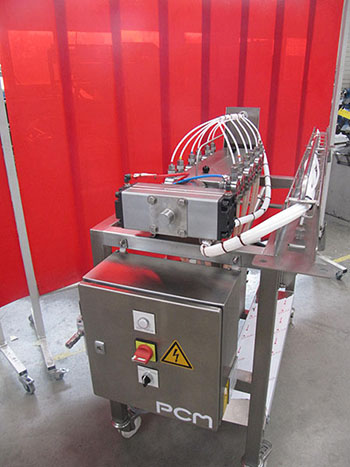

12 heads MDS with in-line filling nozzles

Specific functions

In-line arrangement of the 12 filling nozzles
Control of dosage by connection to the packaging machine (connector allowing displacement of the machine)

Implementation/Description

1 pneumatic 180° rotary actuator only
12 membrane dosing unit heads (mini pp)
Dosing of 0.6 to 1.6 cc / stroke of liquid products without solid (viscosity <500 cp), aromas, dyes, additives type
2% dosing precision
60 strokes/min max. - 5 bars discharge max. - 5 m max. between dosing units and filling nozzles
Static filling nozzles
Compact system (frame on wheels – length 1300 mm – width 600 mm – height 1200 mm)
Low maintenance (membranes only)
Very low power consumption
Cleaning in place by cleaning product suction

Possible variants

6 to 24 heads
Up & down and translation of the filling nozzles
Feeding of buns / pastries
Pot bottom dosing
Doses detection

Context

APPLICATION

Dosing of small quantities of flavorings in yoghurt pots

CHALLENGE

Propose a compact system that can be connected and controlled by the packaging machine requiring 12 online filling heads

BENEFITS

A mobile liquid additive dosing solution, compact and cleanable in place
