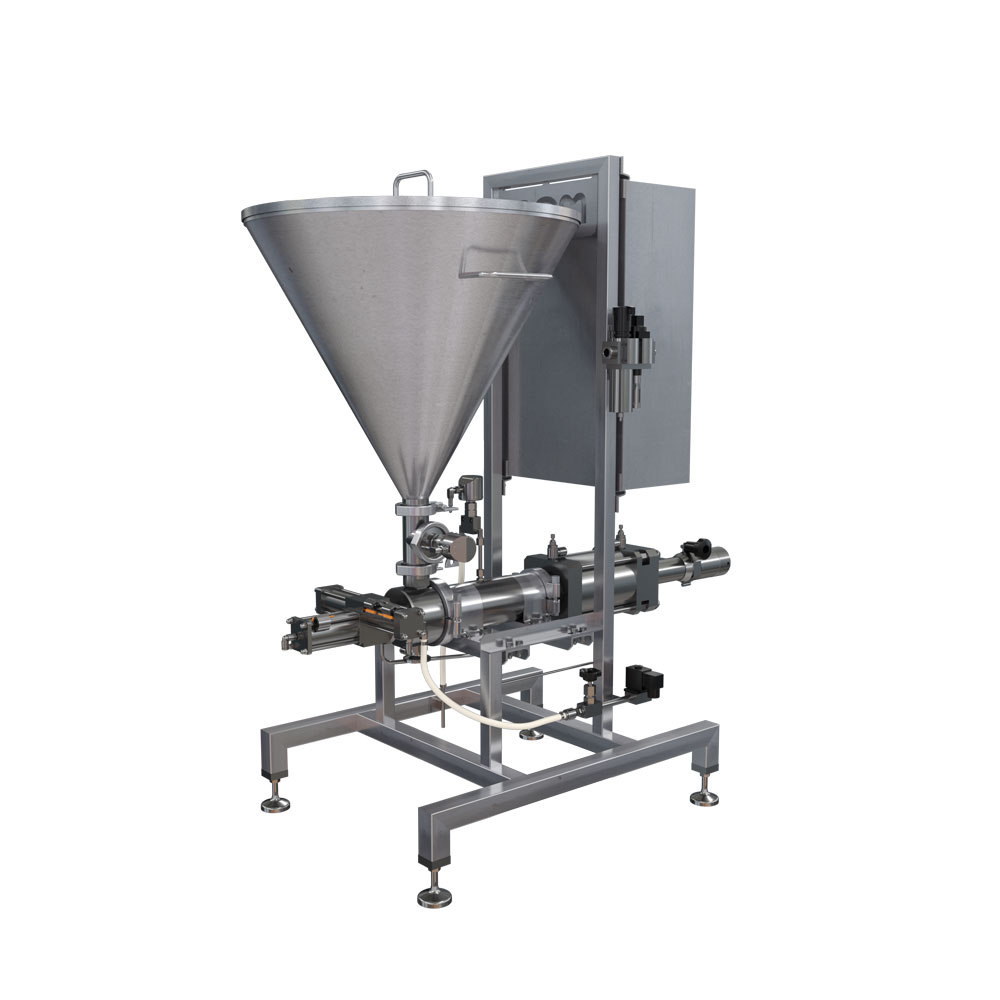

Sanitary dosing station - PCM Dosing Unit

PCM DOSING UNIT is a versatile and cost-effective solution for small production batches.

The PCM Dosing Unit dosing skid has been specially designed for single or multi-ingredient heterogeneous dosing (liquid or solid) with BIB, container or bulk racking (hopper). It is ideal for the production of small batches, especially for convenience food, bakery or dairy products markets.



Let's discover the new catalogue.

PCM Dosing Unit (p.43)

  • Semi-automatic mono-ingredient dosing station PCM Dosing Unit

System benefits

VERSATILITY

• Adaptable to different sucking types

• Applications versatility: convenience food, sauces, fruits...

COMPACTNESS & MOBILITY

• Low footprint: ideal for small production units, easy integration in existing units

100% RELIABLE & REPEATABLE

• Dosys ™ technology (see page 7)

RESPECT OF INGREDIENTS WITH OR WITHOUT MARKERS

HYGIENIC

• Hygienic design of components

• Cleaning in place of dosing units

System performances

(Depending on the DosysTM pump type)

  • Pressure : 20 bars max
  • Speed: 40 strokes/max (if pump set at its maximum volume capacity)
  • Repeatability  : +/- 0.5%
  • Particles size : 48 mm max

System construction

Dosys ™ technology

  • Pneumatic or Brushless actuator
  • Integrated control cabinet with control panel (only for Brushless version)
  • All stainless steel construction
  • Base frame on feet or wheels

Options

  • Moineau™ technology
  • Removable 50L [13.2 usgpm] loading hopper
  • Detection of product level in the hopper
  • Duo or trio version for multi-ingredient applications
