Liquid products flavors or additives - PCM Additive station

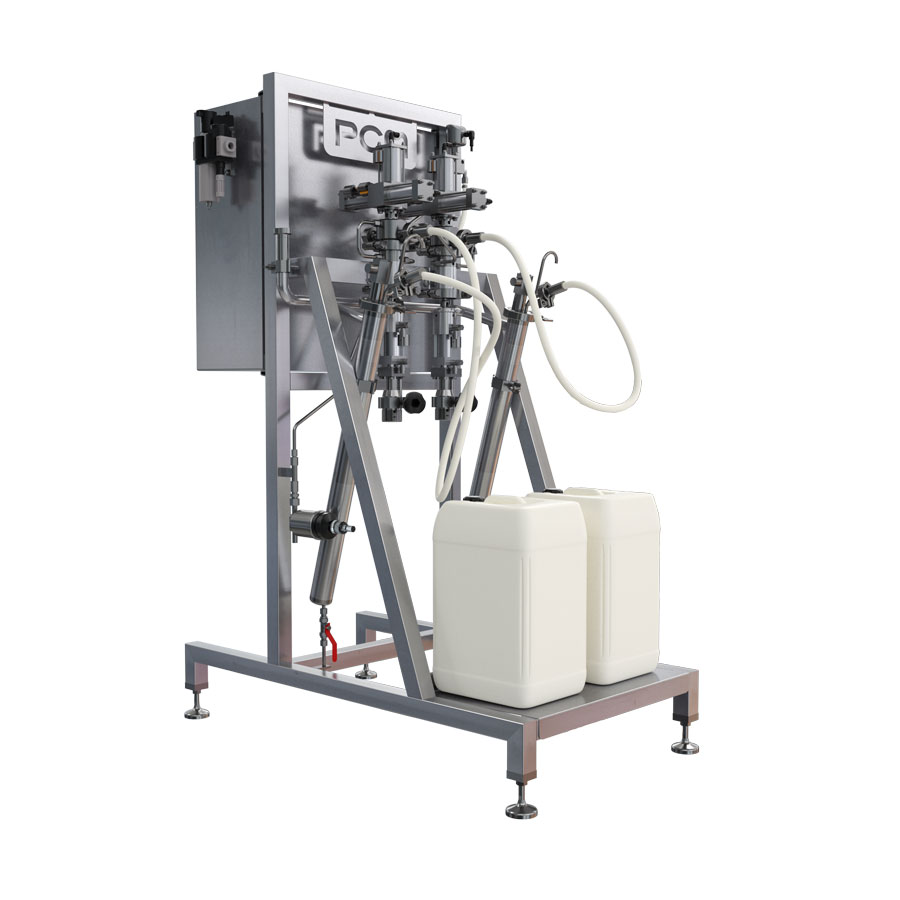

PCM Additive Station is an ideal equipment for aromas and other liquid additives.

The PCM Additive Station is a pumping equipment of single or multi-flavours or liquid additives with drum suction lance. The flavour or additive dose is injected upstream from mixing step into the transfer piping of the main product.

Compact and easily integrated to existing facilities, the PCM additive station can be synchronized either by the conditioning and packaging machines, or depending on the main product flow. Equipped with stainless steel suction rod with low level detection probe to control the end of the tray, the additive station answers perfectly to users looking for safe and accurate dosing process within their complete production chain.

In West Africa, a palm oil manufacturer picked the PCM additive station to dose vitamin A into the bottles of oil. Before PCM, the vitamin additive was mixed with the oil in vats, which required large quantities of vitamin to make sure each bottle contained the required dose. By switching to PCM in-line dosing, the company now uses 50% less additive.

Arrangement

  • Pumps
  • Control cabinet
  • Cleaning in Place sleeve
  • Flavor drum support
  • Suction pipes



Let's discover the new catalogue.

PCM Additive station (p.44)

  • PCM additive station

System benefits

COMPACT & FLEXIBLE SKID

• Compact: containers based on the frame

• Flexibility: several recipes management, doses adjustment (from 0.05 to 40 ml / 0.010 usgpm)

EASE OF USE

• Quick product priming: suction pipe as close as possible to the dosing unit and immersed directly into the container

• Synchronization of the dosage through the conditioning machine (just in time) or according to the flowrate of the main product

• At the end of production, the suction pipe can be positioned in its cleaning sleeve

100% RELIABLE & REPEATABLE

• Dosys ™ technology (see page 7)

• Perfect accuracy of the required doses (repeatability: 0,5 %)

HYGIENIC

  • Hygienic design of the components
  • Cleaning of place of dosing units and suction pipes

System construction

Dosys™ technology:

  • Pneumatic or Brushless actuator
  • Vertical pump configuration
  • Suction pipe adapted to the container
  • Suction wand CIP sleeve
  • Integrated control cabinet with control panel (IHM)
  • All stainless steel construction

Options

  • End of drum detection device
  • Injection point
  • Containers weighting
  • Doses detection

System performances

  • Pressure: 20 bars max
  • Speed: 60 strokes/min (if pump set at its maximum volume capacity)
  • Repeatability: +/- 0,5%
  • Minimum dose in this process: 0,1 cc
  • Doses between 4,07 to 40,7 cc
